SKU:3695127
Simulation Helicopter Force-Feedback Collective-Base, Compatible with Most Grip Heads
Couldn't load pickup availability
About the Product
Features:
.High-Output Force Feedback Performance: Delivers force feedback torque up to 17 Nm, supporting 24–48V DC power input (36V rated). Provides clear, perceptible feedback for helicopter collective or control lever applications, enhancing control awareness during operation.
.High-Resolution Angle Detection: Integrates a 5047P Hall sensor with up to 65,535 resolution, enabling stable, fine-grained input sampling and precise force feedback response for smooth and consistent control behavior.

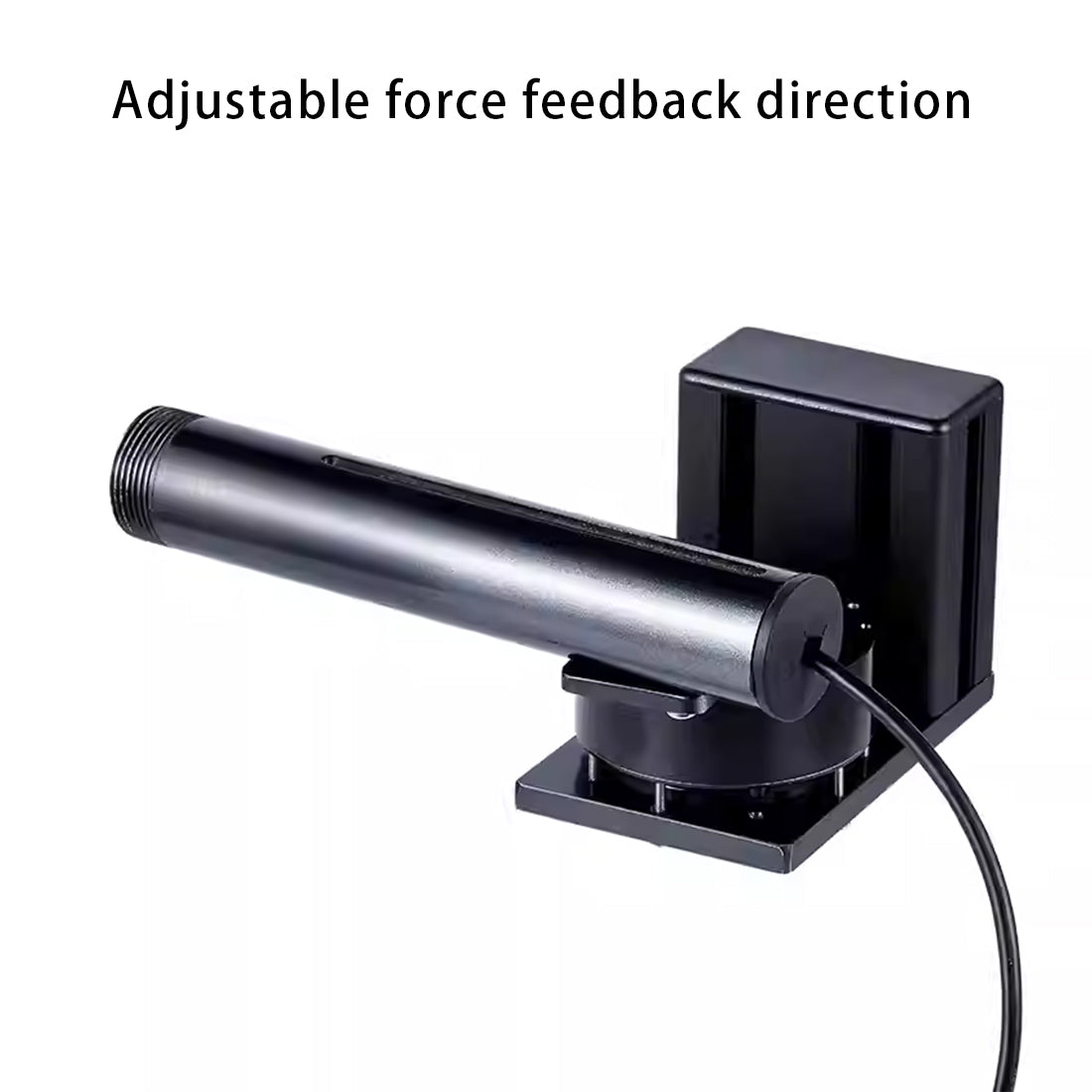

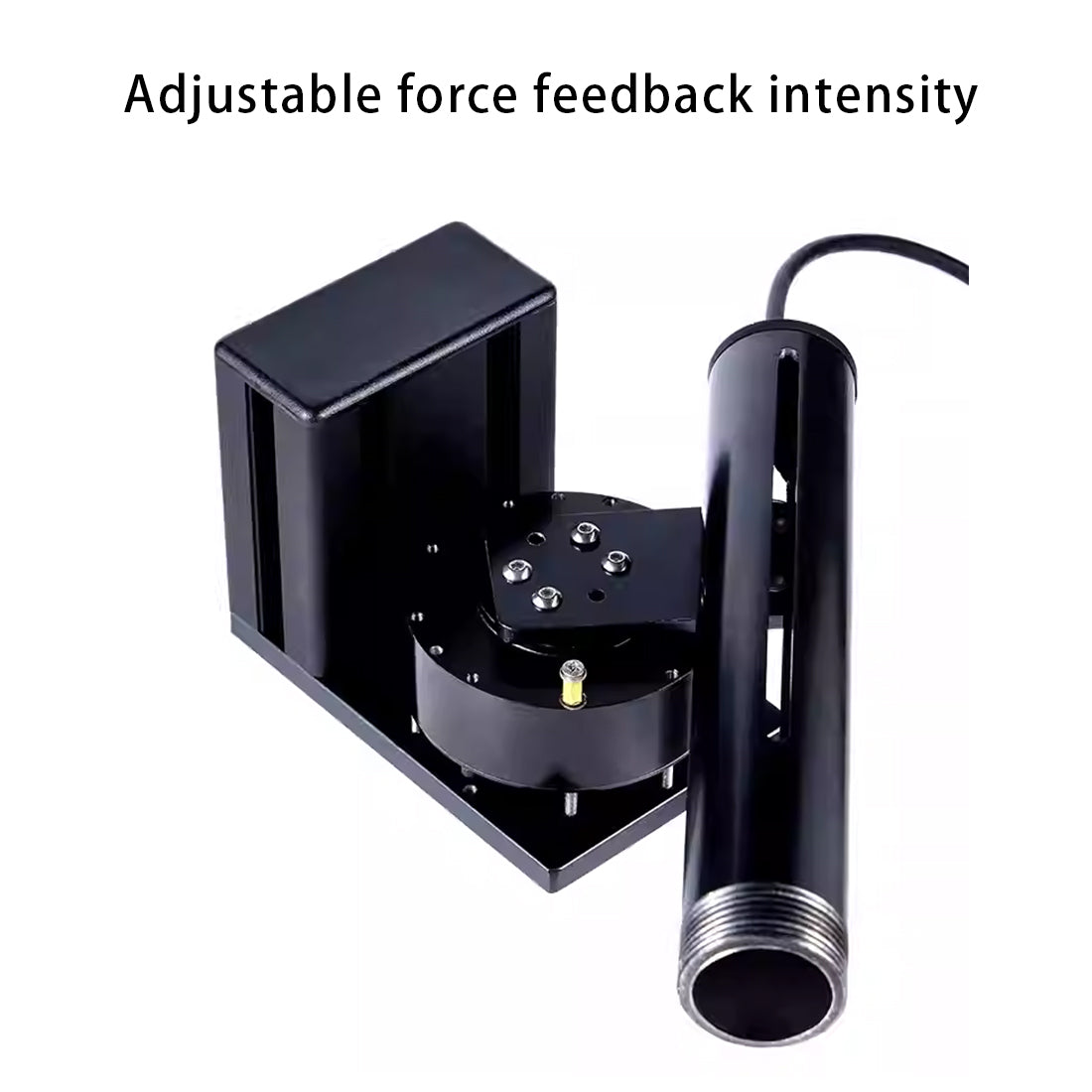

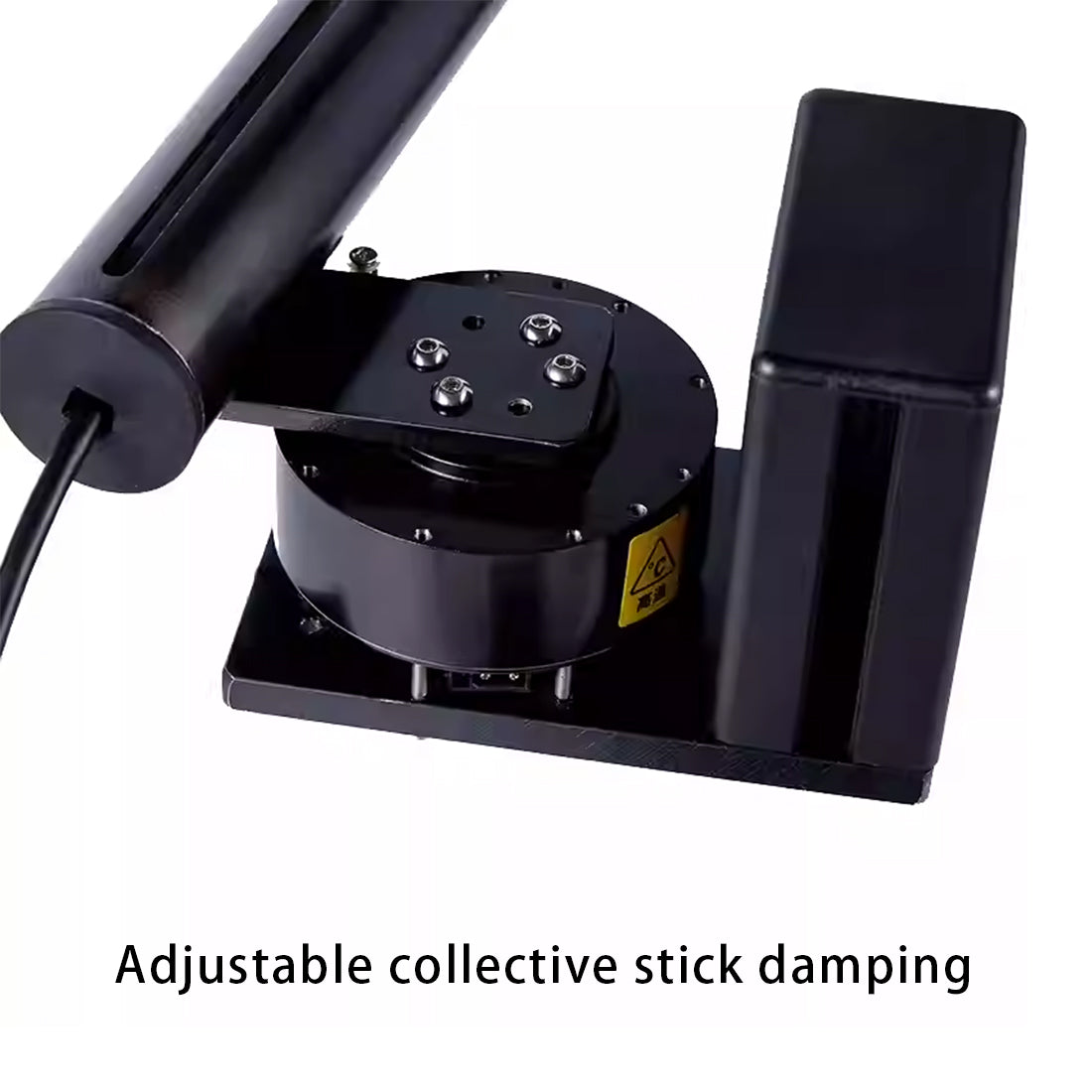

.Adjustable Force, Direction, and Damping: Force-intensity and direction are configurable, combined with an adjustable damping structure for collective axis. Push–pull resistance remains even and controlled, reducing free-play sensation and improving input accuracy.
.Quasi Direct-Drive Integrated Joint Module: Modular integrated joint design maintains stable axis alignment without loosening or binding. Eliminates frequent re-tightening commonly required by traditional fixed mounting methods, supporting long-term mechanical consistency.
.Flexible Mounting and Easy Integration: Output shaft supports horizontal or vertical installation. Compact form factor allows convenient integration into desktop flight control rigs and simulator systems, compatible with most collective grip heads on the market.
Specifications:
.Material: Aluminum Alloy, Electronic Components
.Product Weight: 1030g
.Package Weight: 1350g
.Product Dimensions: 22.5 x 17.5 x 8.8cm
.Package Dimensions: 30 x 25 x 12cm
.Packing: Cardboard Box
.Age: 16+
Package Content：
.Main Unit *1
.Controller *1
.12080 Profile *1
.M8 Countersunk Screws *3
.Angle Iron *2
.Angle Iron Screws and Nuts *4 sets
.3mm Allen Wrench *1
.5mm Allen Wrench *1
.Open-end Wrench *1
.Power Adapter *1
.Type-C Cable *1
.5pin Adapter Cable *1
Product Details
Flight Range: Up to 1,000 meters (3,280 feet)
Maximum Speed: 45 kilometers per hour (28 miles per hour)
Remote Control: Ergonomically designed remote controller with intuitive
controlsCompatibility: Compatible with iOS and Android smartphones for easy app-based controlWeight: Lightweight design for improved flight performance and portability
