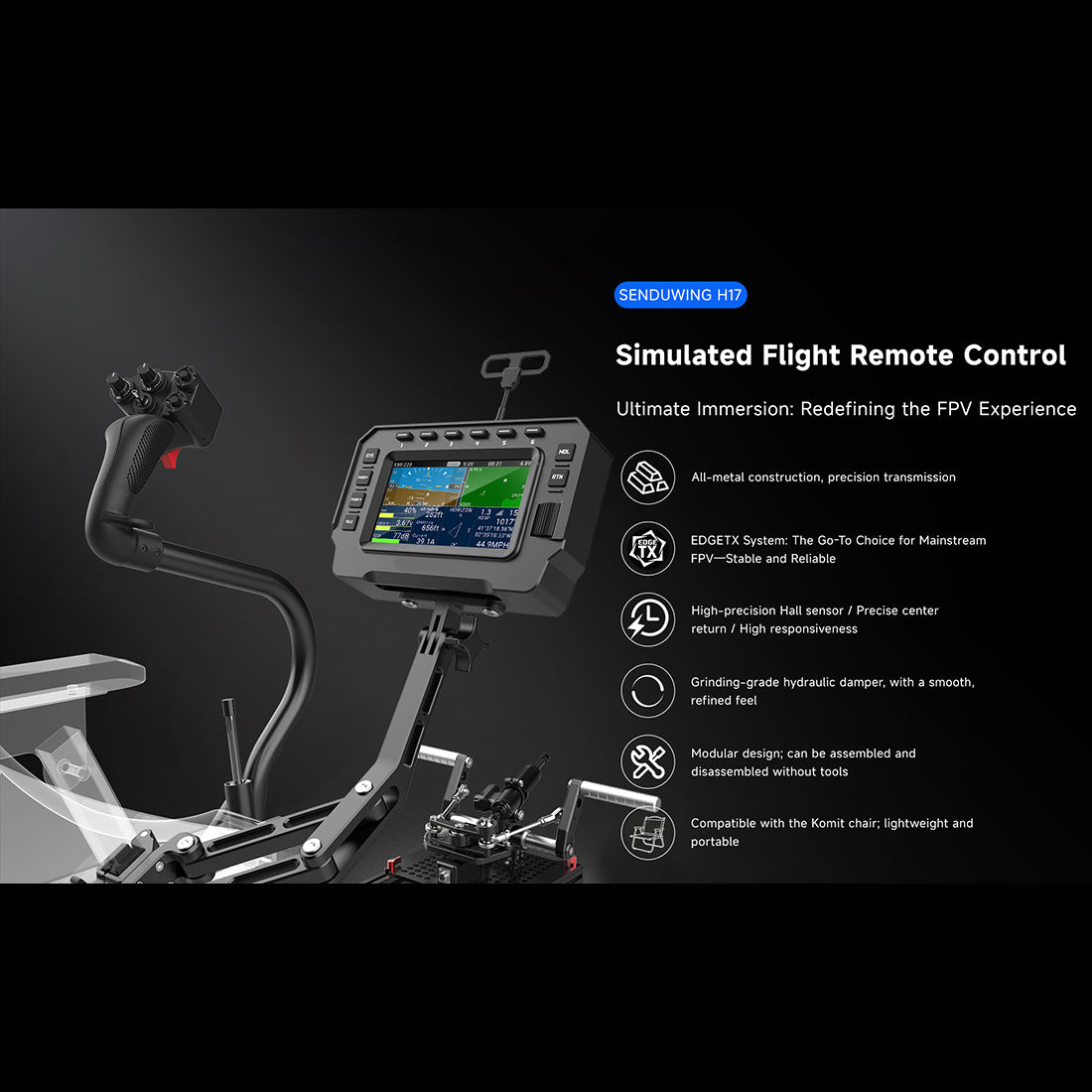

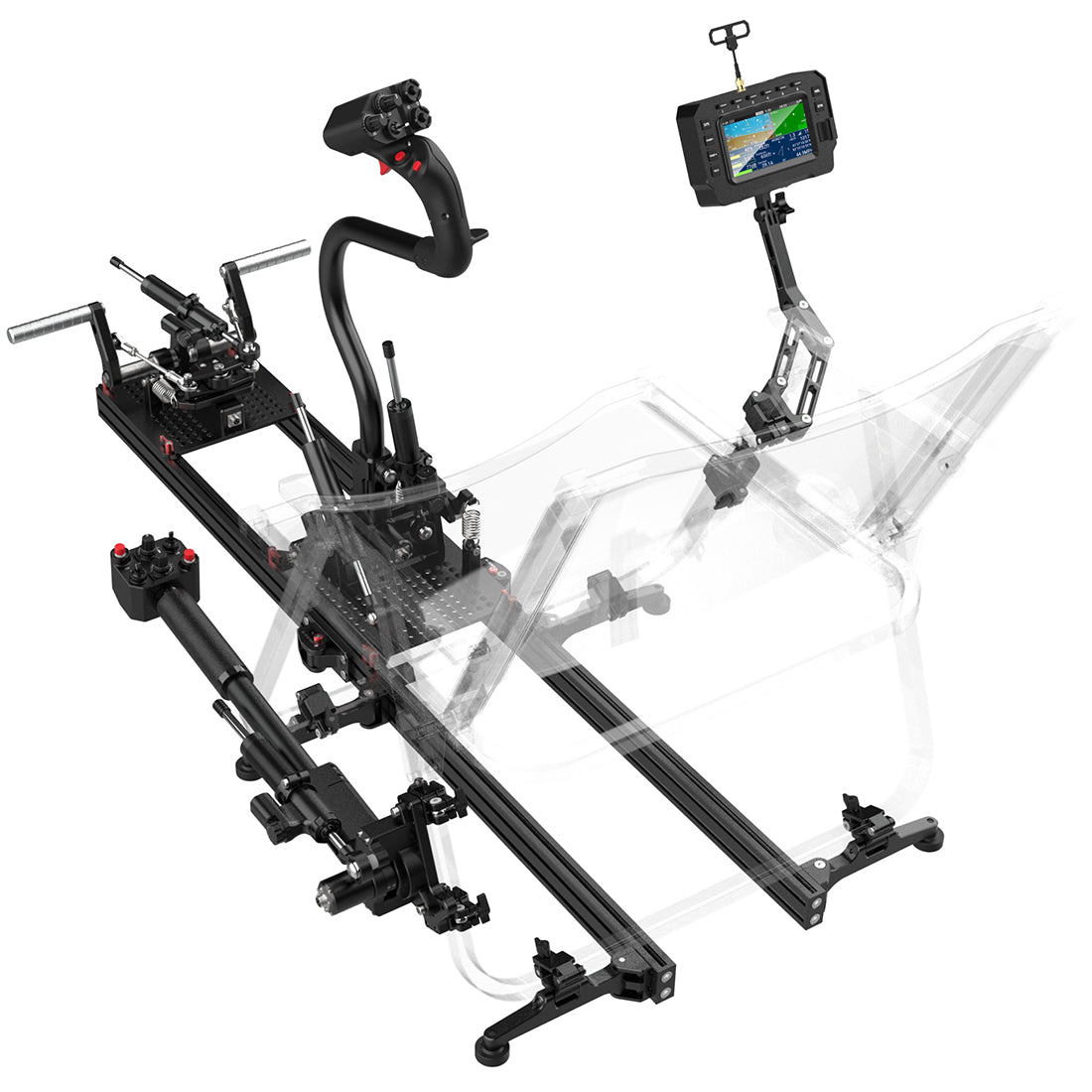

SENDUWING H17 RC Helicopter Flight Simulator Controller | 17CH CNC Metal Transmitter with Collective Pitch Lever & Foot Pedals

Features

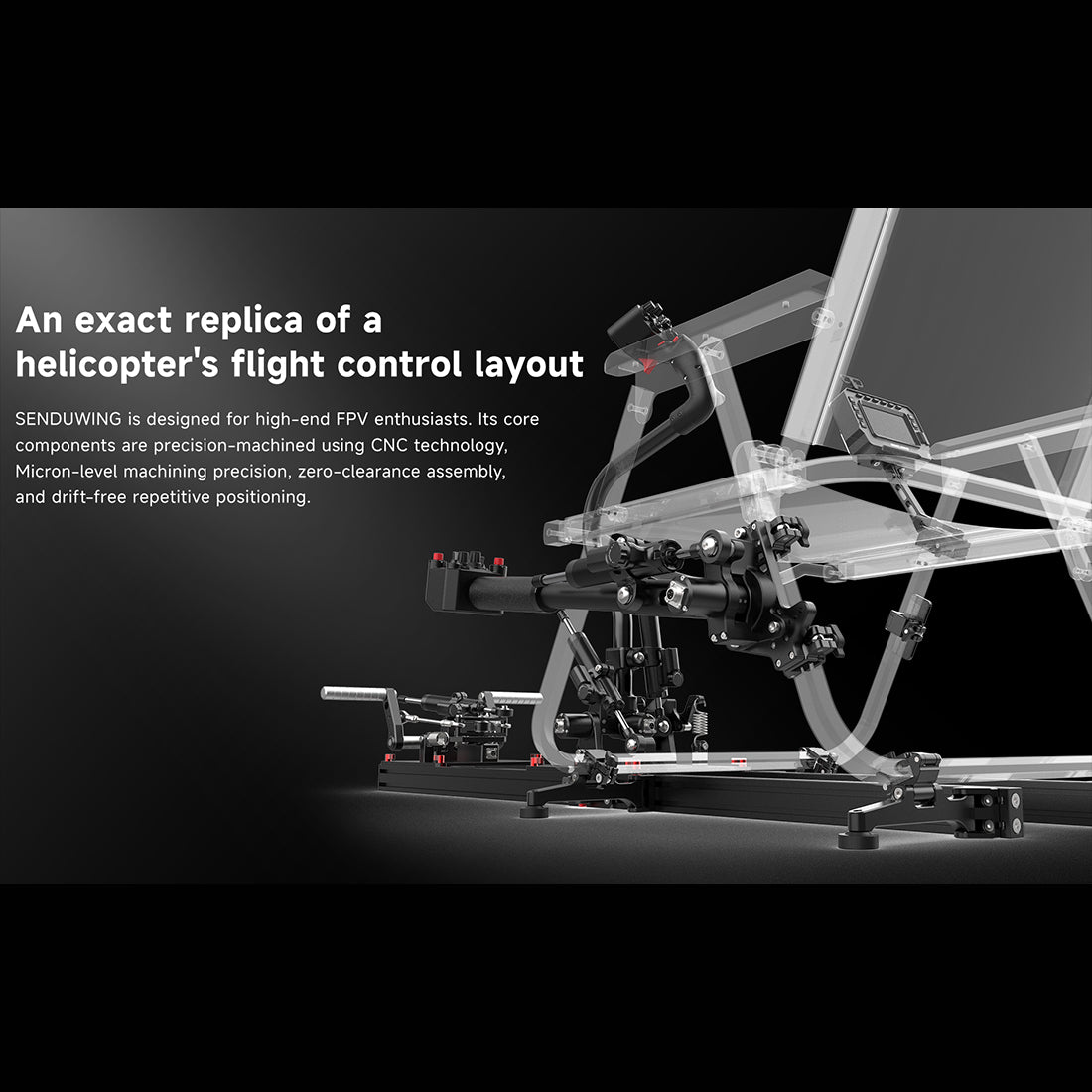

1. Precisely replicates the helicopter flight control layout; core components are precision-machined using CNN technology, achieving micron-level precision, frameless control, and drift-free repeatability.

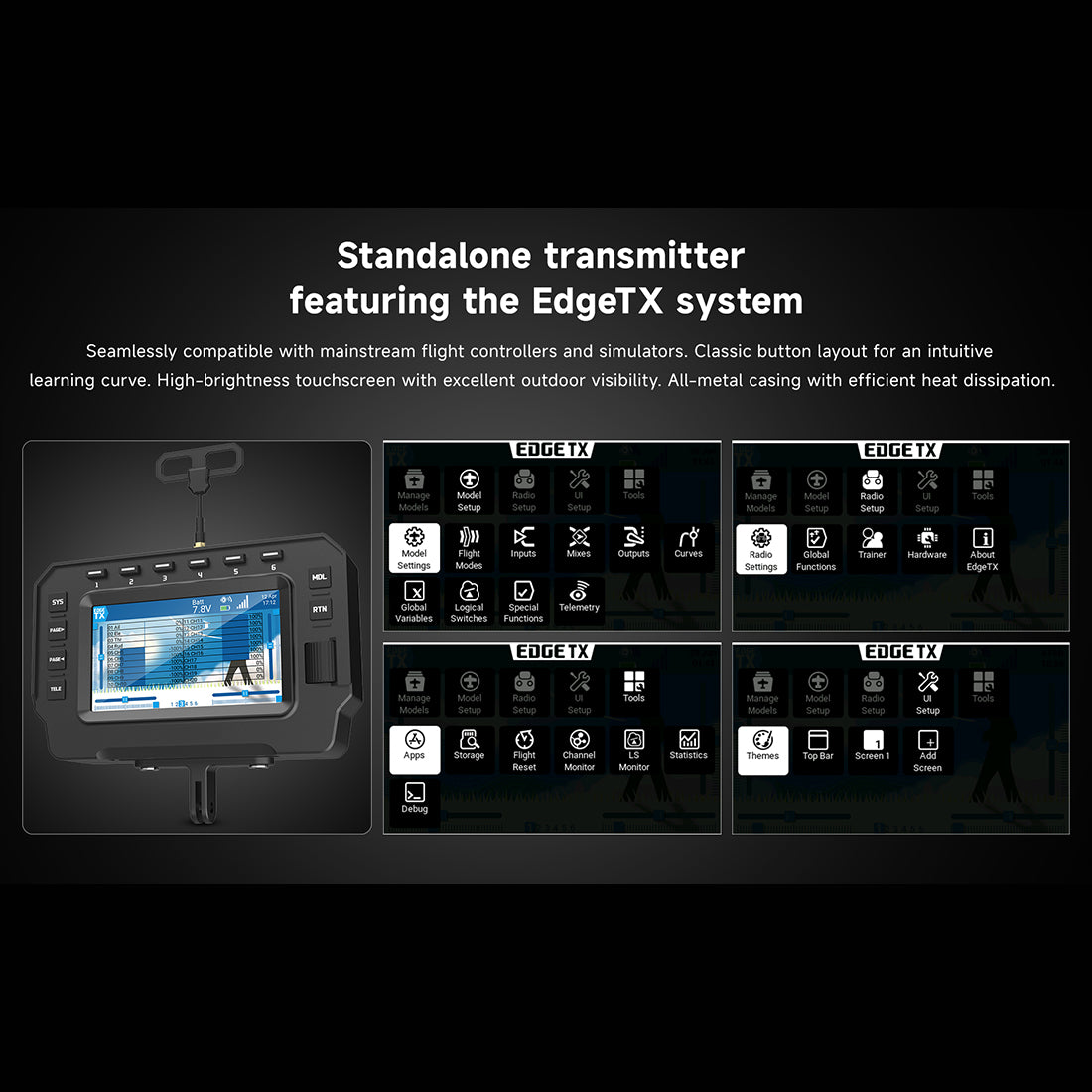

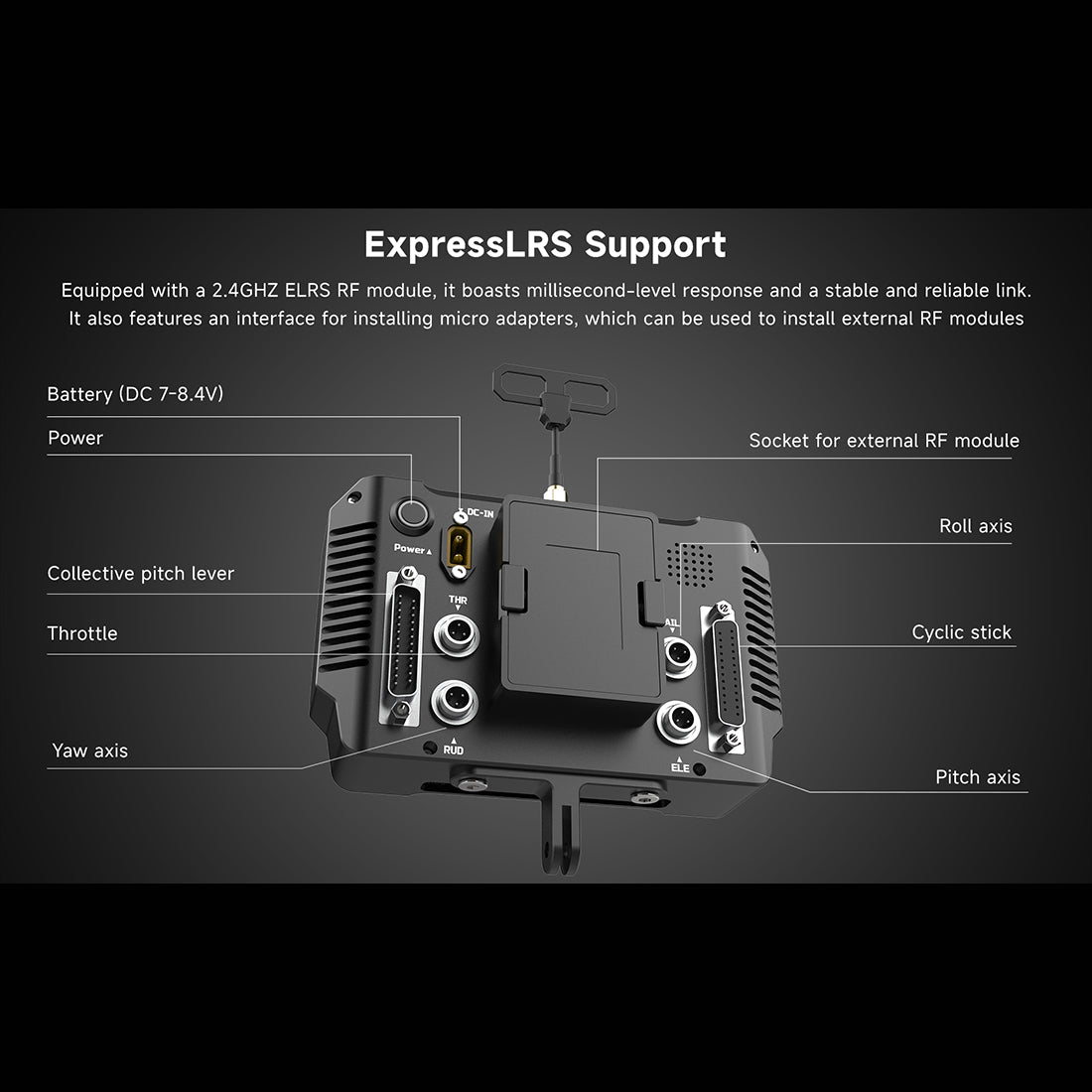

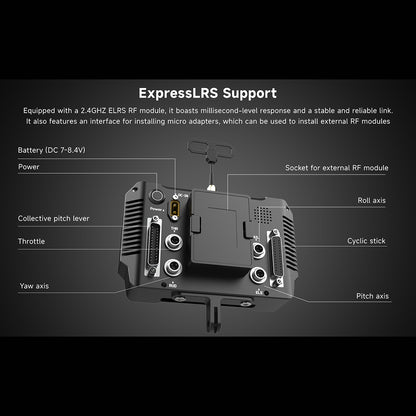

2. Independent transmitter, equipped with the Edge TX system, seamlessly adaptable to mainstream flight controllers/simulators, classic button layout, easy to use. 3. Built-in 2.4G ELRS LNB, millisecond-level response. Also features a JR bay interface for connecting to an external Spektrum protocol LNB.

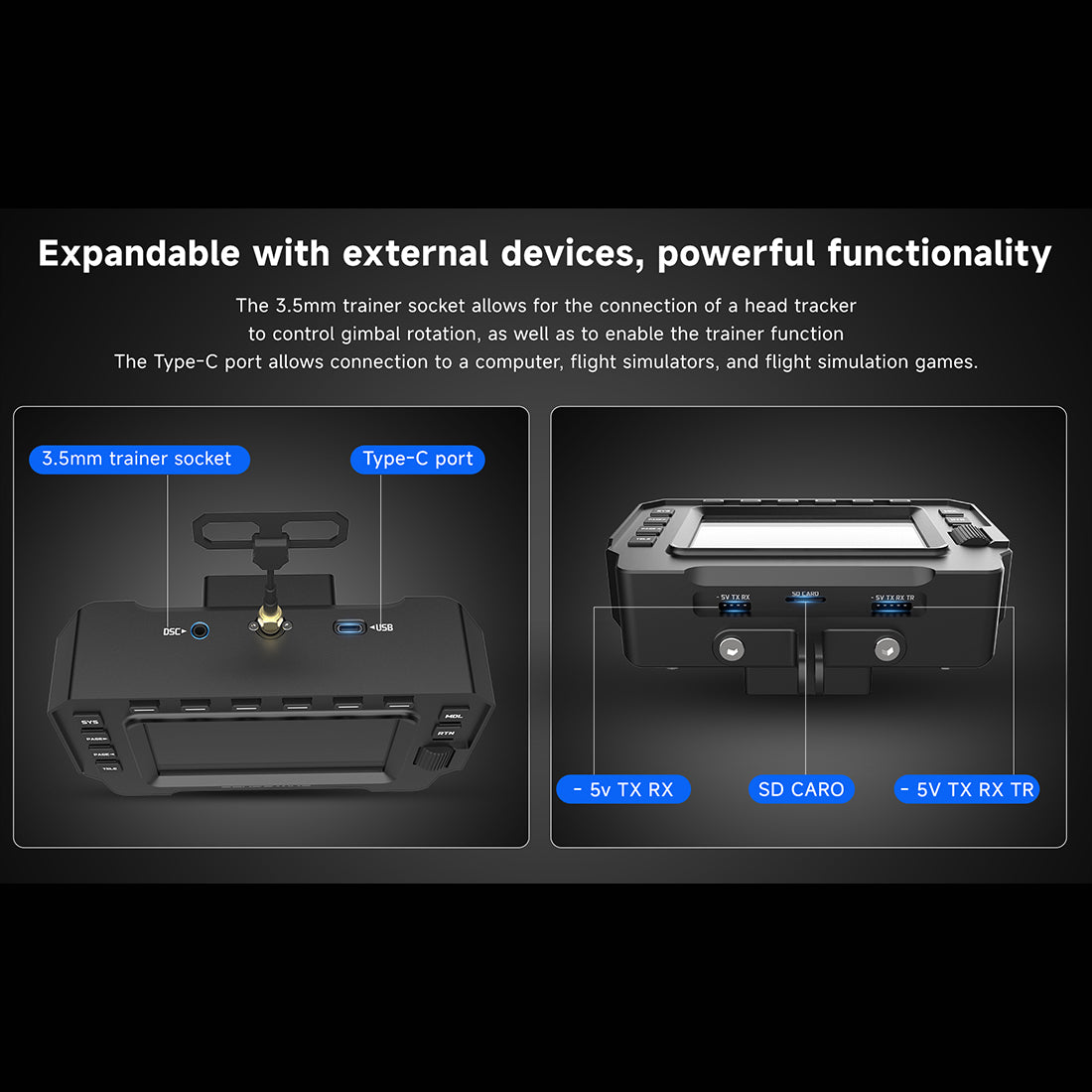

4. Powerful external expansion capabilities: The transmitter's 3.5mm trainer port allows for external gimbal rotation control/dual-station coordinated training functions; the Type-C interface connects to flight simulators and flight simulation games.

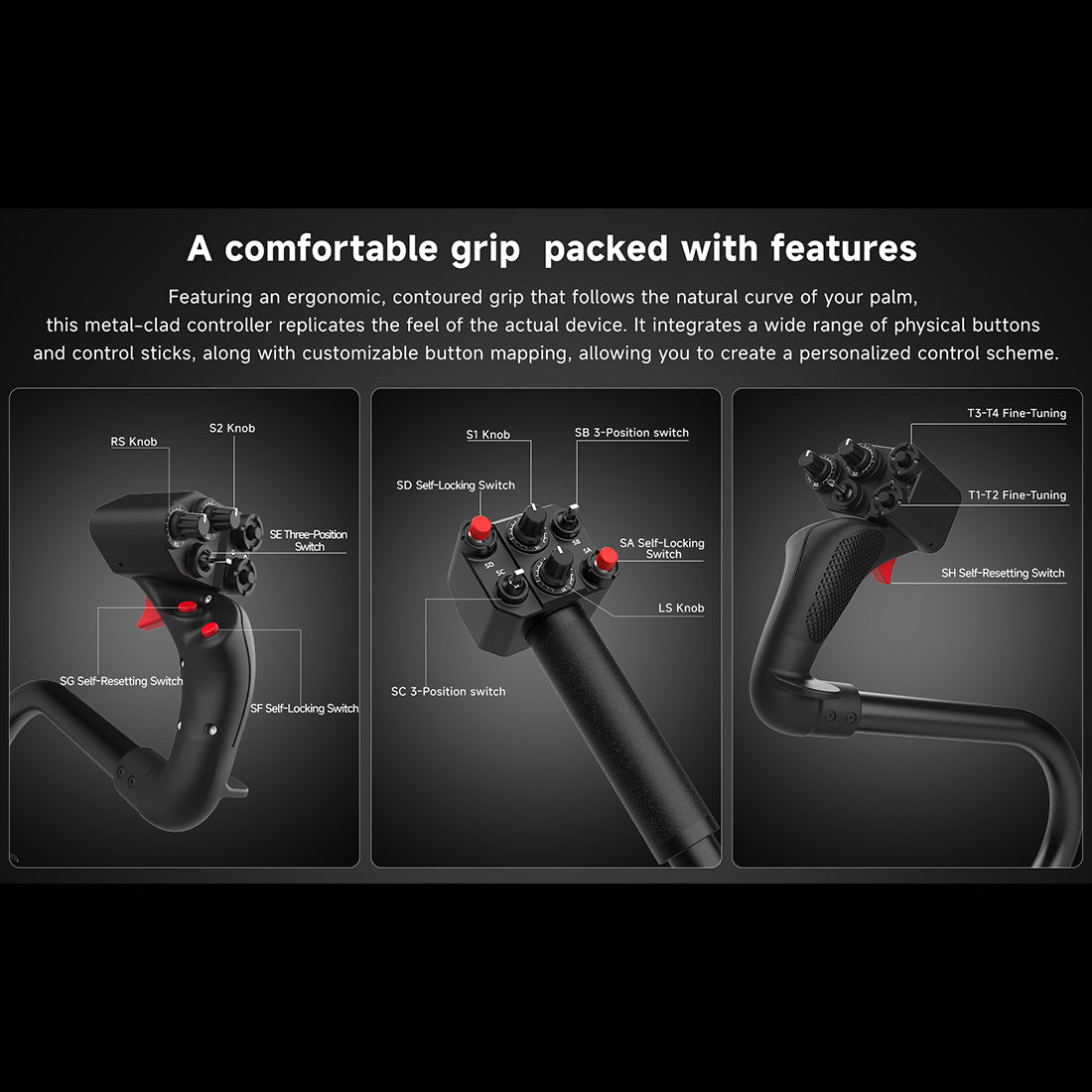

5. Ergonomic curved grip conforms to the natural curve of the palm; the metal material replicates the feel of the real aircraft; customizable button mapping allows for personalized operation.

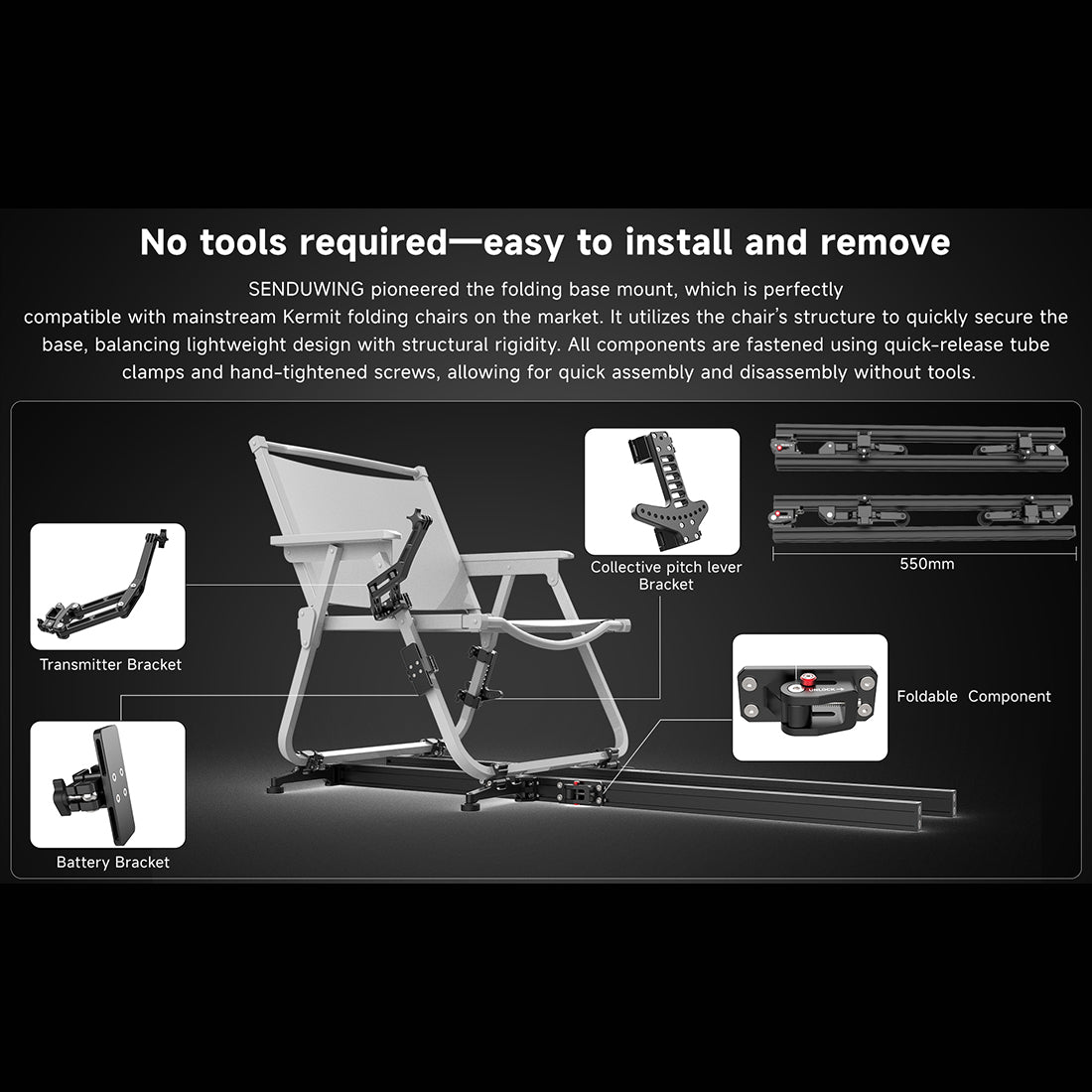

6. Foldable base bracket, compatible with mainstream Kermit folding chairs, utilizes the chair body structure to quickly fix the base, balancing lightweight and rigid structure (Kermit chair legs are only available in square tube type).

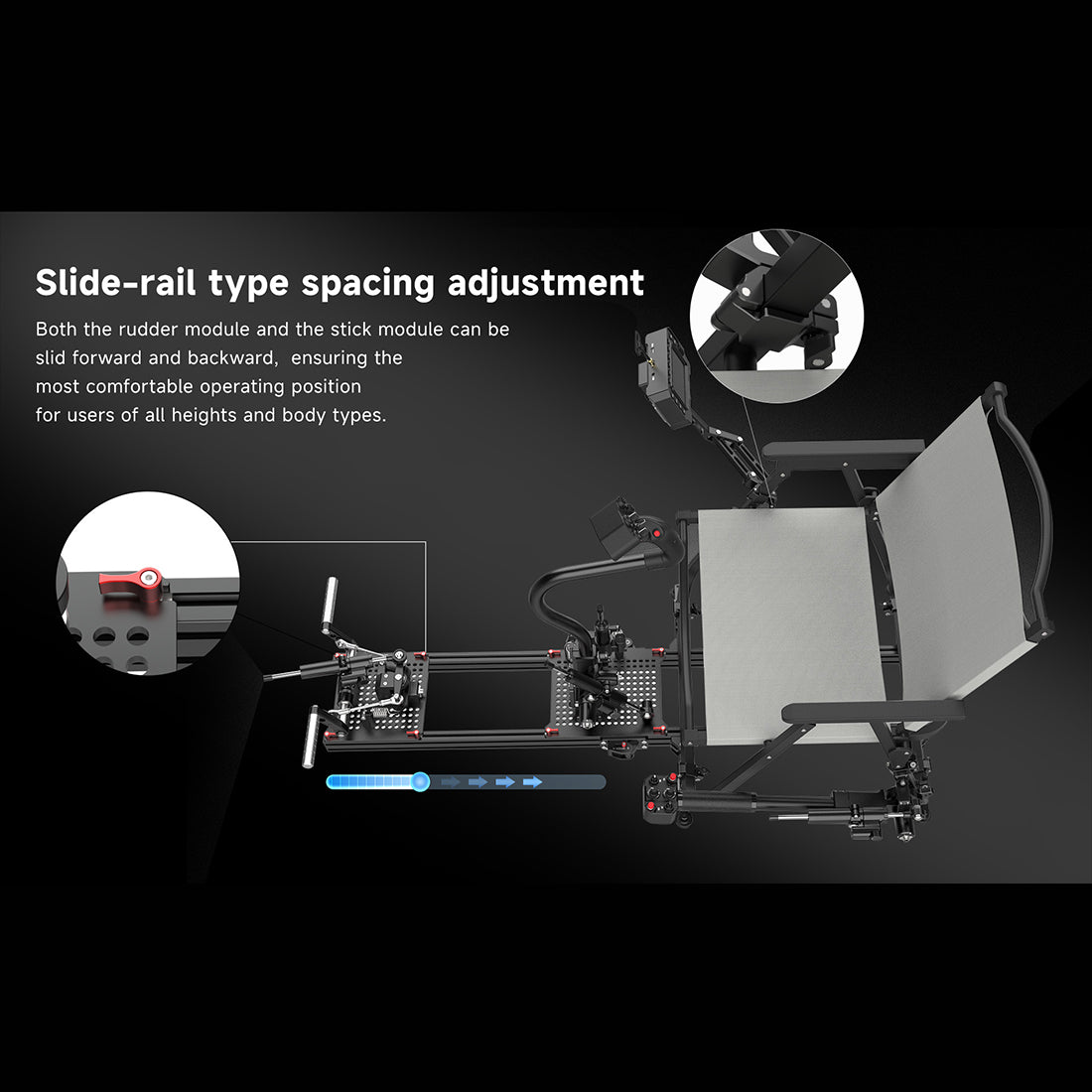

7. Sliding rail spacing adjustment: Both the foot rudder module and the control stick module can be slid forward and backward to adjust the spacing, allowing different heights and body types to quickly find a comfortable driving posture.

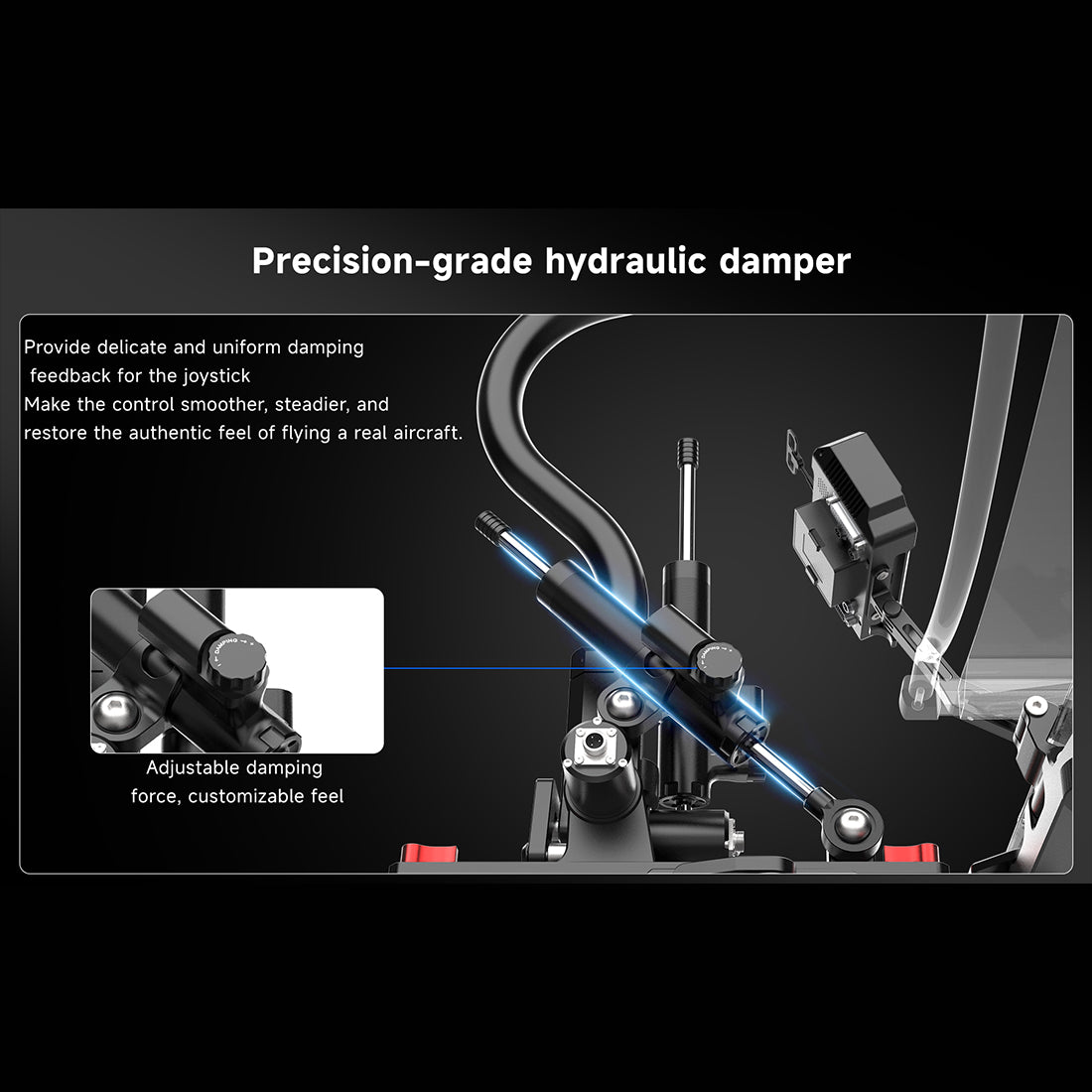

8. Ultimate control feel: Built-in hydraulic damper provides realistic physical torque feedback.

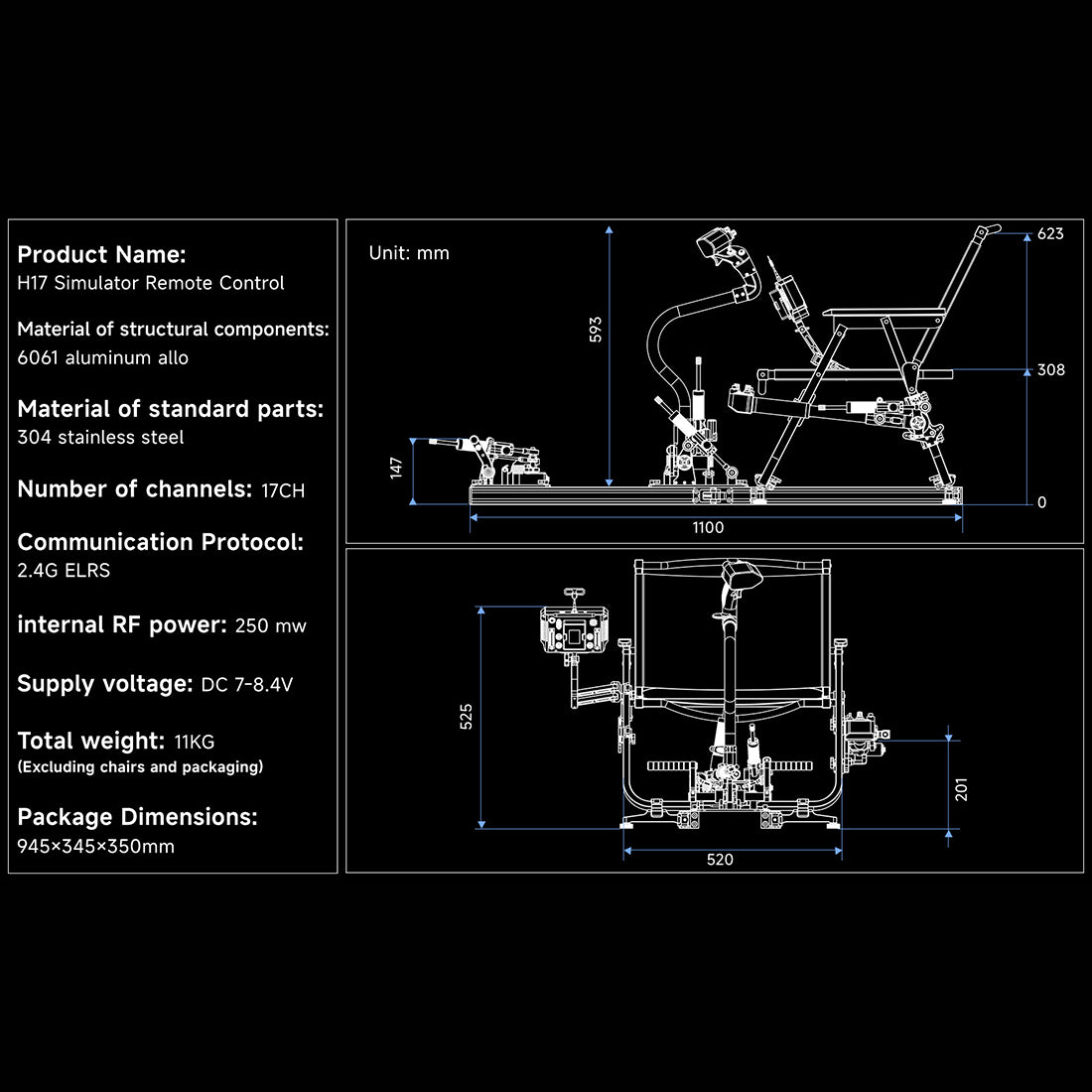

Specifications
.Material: CNC Aluminum Alloy
.Dimensions: 94.5 × 34.5 × 35 cm
.Color: As Shown
.Weight: 11 kg
.System: EdgeTX Operating System
.Power Supply: DC 7-8.4V
.Channels: 17 Channels
.Built-in RF Module Power: 250mW
.Control Range: Over 4 km

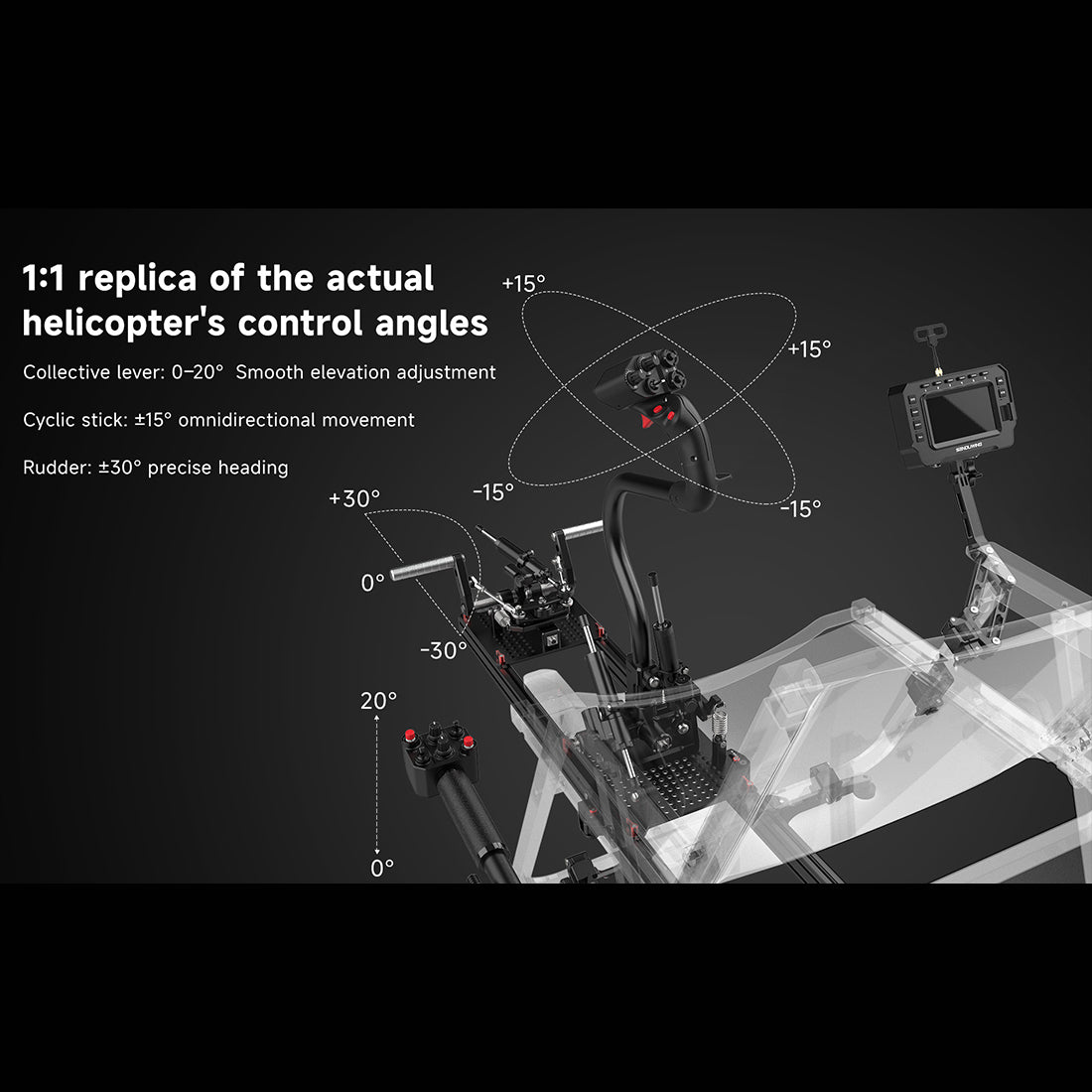

.Collective Pitch Lever: 0-20° Precise Pitch Adjustment
.Cyclic Stick: ±15° Full-Direction Control
.Foot Pedals: ±30° Precise Yaw Control
.3-Position Switches: 3
.2-Position Lock Switches: 3
.Knobs: 4
.Trim Buttons: 2
.Self-Reset Switches: 2
.External Battery Port: XT30
.Assembly Time: Approx. 10-15 minutes by one person
. Product Weight: 11000g
.Package Weight:  20000g
.Product Dimensions: 110x 52 x 62.3cm
.Package Dimensions: 94.5x 34.5 x 35cm
.Packing: Graphic Carton

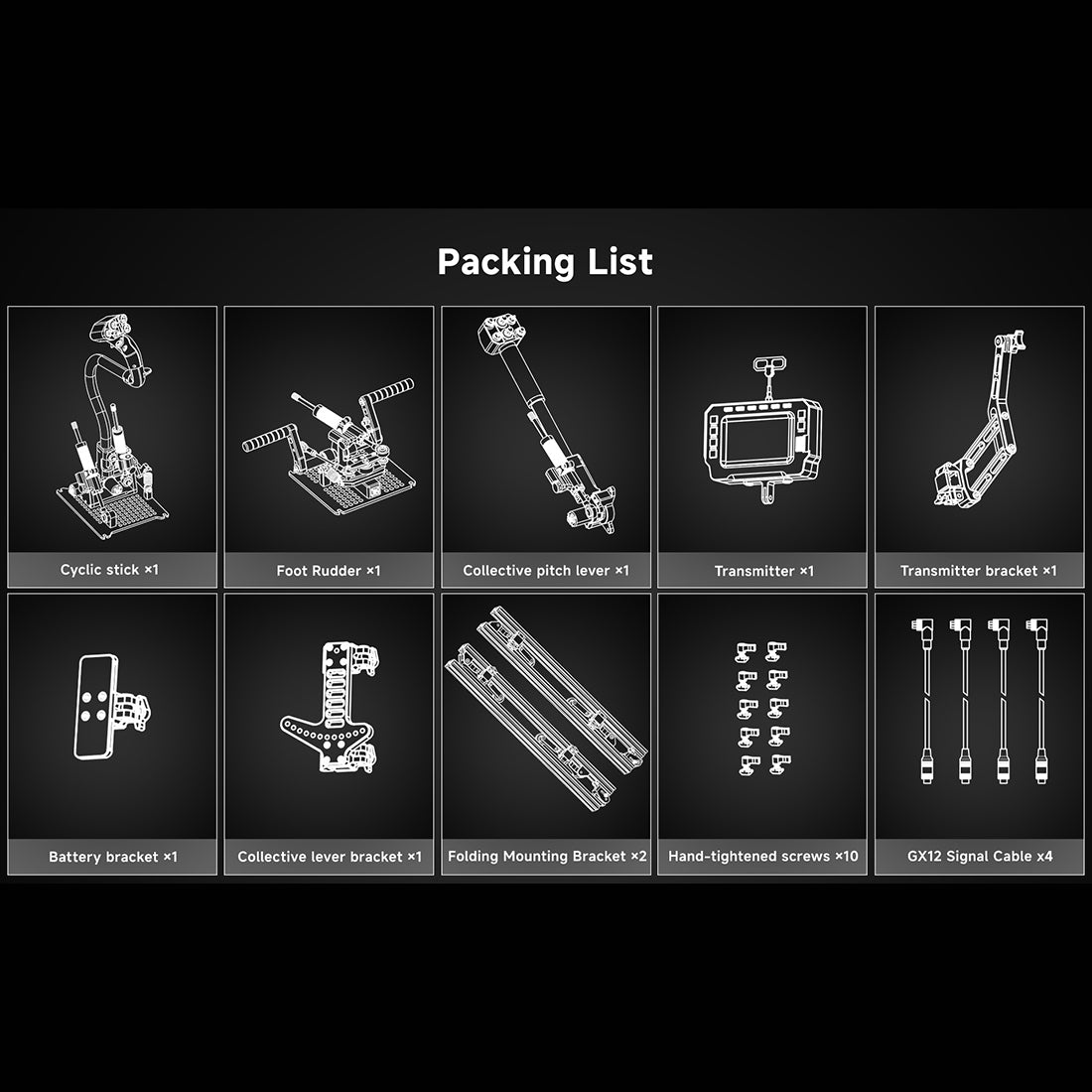

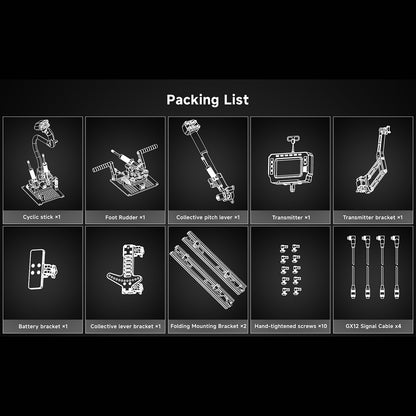

Package Content
.Cyclic Control Stick ×1
.Foot Pedal Module ×1
.Collective Pitch Lever ×1
.Transmitter ×1
.Transmitter Mount Bracket ×1
.Battery Mount ×1
.Collective Lever Mount Base ×1
.Seat Brackets ×2
.Hand Screws ×10
.GX12 Signal Cables ×4
